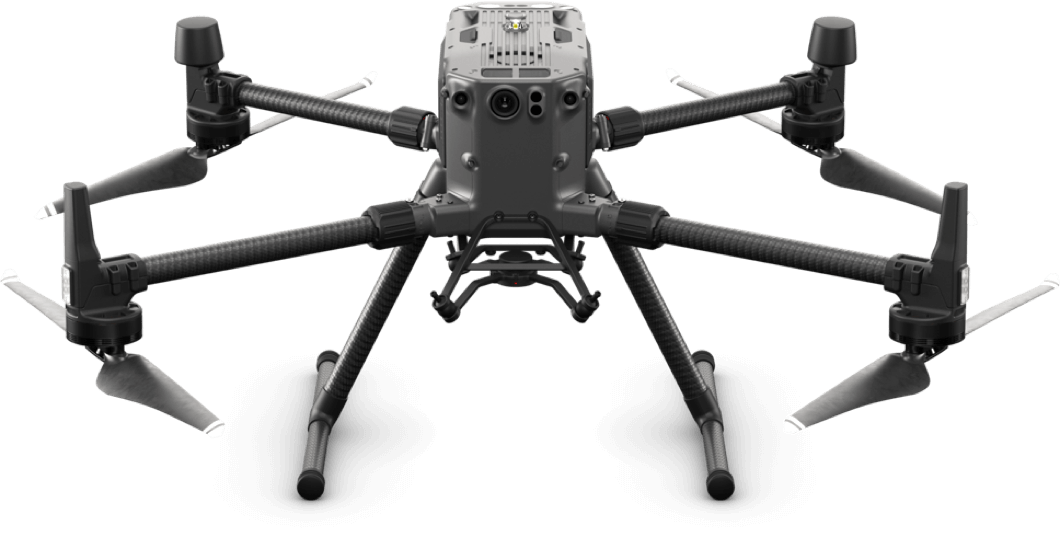

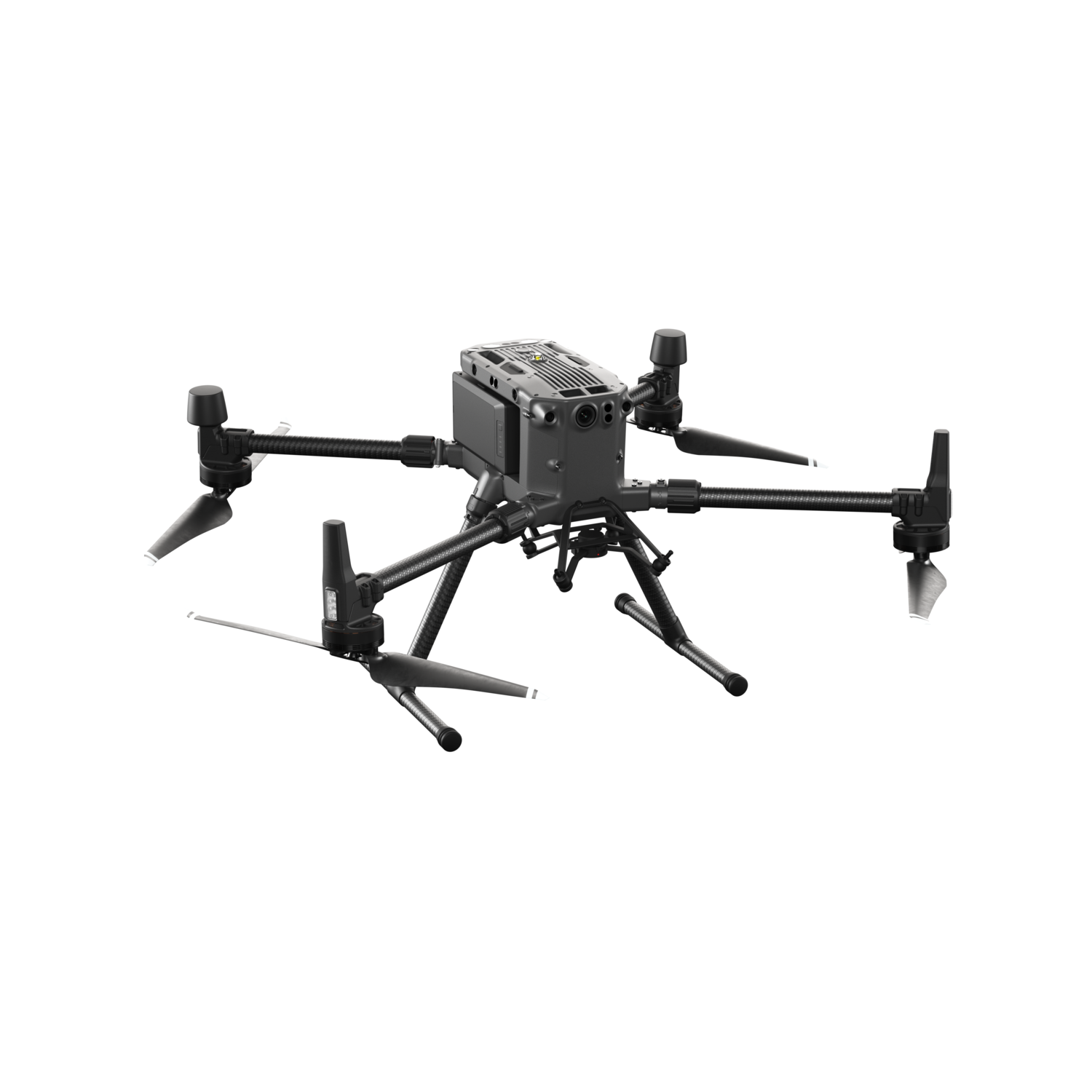

DJI Matrice 300RTK (UniversalEdition)

Dimensions:

• Unfolded (propellers excluded): 810×670×430 mm (L×W×H)
• Folded (propellers included): 430×420×430 mm (L×W×H)

Diagonal Wheelbase:

• 895 mm

Weight:

• With single downward gimbal: Approx. 3.6 kg (without batteries), Approx. 6.3 kg (with two TB60 batteries)

Single Gimbal Damper’s Max Payload:

• 930g

Max Takeoff Weight:

• 9 kg

Operating Frequency:

• 2.4000-2.4835 GHz
• 5.725-5.850 GHz

EIRP:

• 2.4000-2.4835 GHz: 29.5 dBm (FCC); 18.5dBm (CE)
• 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE)

Hovering Accuracy (P-mode with GPS):

• Vertical: ±0.1 m (Vision System enabled), ±0.5 m (GPS enabled), ±0.1 m (RTK enabled)
• Horizontal: ±0.3 m (Vision System enabled), ±1.5 m (GPS enabled), ±0.1 m (RTK enabled)

RTK Positioning Accuracy:

• Horizontal: 1 cm+1 ppm, Vertical: 1.5 cm + 1 ppm

Max Angular Velocity:

• Pitch: 300°/s, Yaw: 100°/s

Max Pitch Angle:

• 30° (P-mode, Forward Vision System enabled: 25°)

Max Ascent Speed:

• S mode: 6 m/s, P mode: 5 m/s

Max Descent Speed (vertical):

• S mode: 5 m/s, P mode: 4 m/s

Max Descent Speed (tilt):

• S Mode: 7 m/s

Max Speed:

• S mode: 23 m/s, P mode: 17 m/s

Service Ceiling Above Sea Level:

• 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)

Max Wind Resistance:

• 12 m/s

Max Flight Time:

• 55 min

Supported DJI Gimbals:

• Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1

Supported Gimbal Configurations:

• Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals

Ingress Protection Rating:

• IP45

GNSS:

• GPS+GLONASS+BeiDou+Galileo

Operating Temperature:

• -20°C to 50°C (-4°F to 122° F)

Remote Controller:

• Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
• Max Transmitting Distance: NCC/FCC: 15 km, CE/MIC: 8 km, SRRC: 8 km

External Battery (WB37 Intelligent Battery):

• Capacity: 4920 mAh
• Voltage: 7.6V
• Type: LiPo
• Energy: 37.39Wh

Built-in Battery:

• Type: 18650 lithium-ion battery (5000 mAh @ 7.2 V)
• Rated Power: 17 W

Battery Life:

• Built-in battery: Approx. 2.5h
• Built-in battery + External battery: Approx. 4.5h

USB Power Supply:

• 5 V / 1.5 A

Vision System:

• Obstacle Sensing Range: Forward/Backward/Left/Right: 0.7-40m, Upward/Downward: 0.6-30m
• FOV: Forward/Backward/Downward: 65° (H), 50° (V), Left/Right/Upward: 75°(H), 60°(V)

Infrared ToF Sensing System:

• Obstacle Sensing Range: 0.1-8m
• FOV: 30° (±15°)

FPV Camera:

• Resolution: 960p
• FOV: 145°
• Frame Rate: 30 fps

Intelligent Flight Battery (TB60):

• Capacity: 5935 mAh
• Voltage: 52.8 V
• Battery Type: LiPo 12S
• Energy: 274 Wh
• Net Weight: Approx. 1.35 kg

BS60 Intelligent Battery Station:

• Dimensions: 501403252mm
• Net Weight: 8.37kg
• Maximum Capacity: TB60 Intelligent Flight Battery × 8, WB37 Intelligent Battery × 4
• Input: 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
• Max. Input Power: 1070W
• Output Power: 100-120 V: 750 W, 220-240 V: 992 W
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)

With its comprehensive feature set and robust construction, the Aircraft is the ultimate choice for professionals seeking unmatched performance in aerial operations.
