Additional data |
|
|---|---|
| Rated input power | 600 W |
| Bit holder | 1/2″-20 UNF |
| No-load speed, 1st gear | 0 – 2,800 rpm |
| Power output | 301 W |
| Weight | 1.8 kg |
| Impact rate at no-load speed | 0 – 44,800 bpm |
| Rated torque | 1.8 Nm |
| Drill spindle connecting thread | 1/2″-20 UNF |
| Chuck capacity, min./max. | 1.5 – 13 mm |
Drilling range |
|
|---|---|
| Drilling diameter in wood | 25 mm |
| Drilling diameter in steel | 10 mm |
| Drilling diameter in masonry | 15 mm |
Total vibration values (Drilling in metal) |
|
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
Total vibration values (Impact drilling in concrete) |
|
|---|---|
| Vibration emission value ah | 26 m/s² |
| Uncertainty K | 3 m/s² |
Total vibration values (Screwdriving) |
|
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
Drilling in metal |
|
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
Impact drilling in concrete |
|
|---|---|
| Vibration emission value ah | 26 m/s² |
| Uncertainty K | 3 m/s² |
Screwdriving |
|
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 108 dB(A). Uncertainty K= 5 dB.
Product Highlights

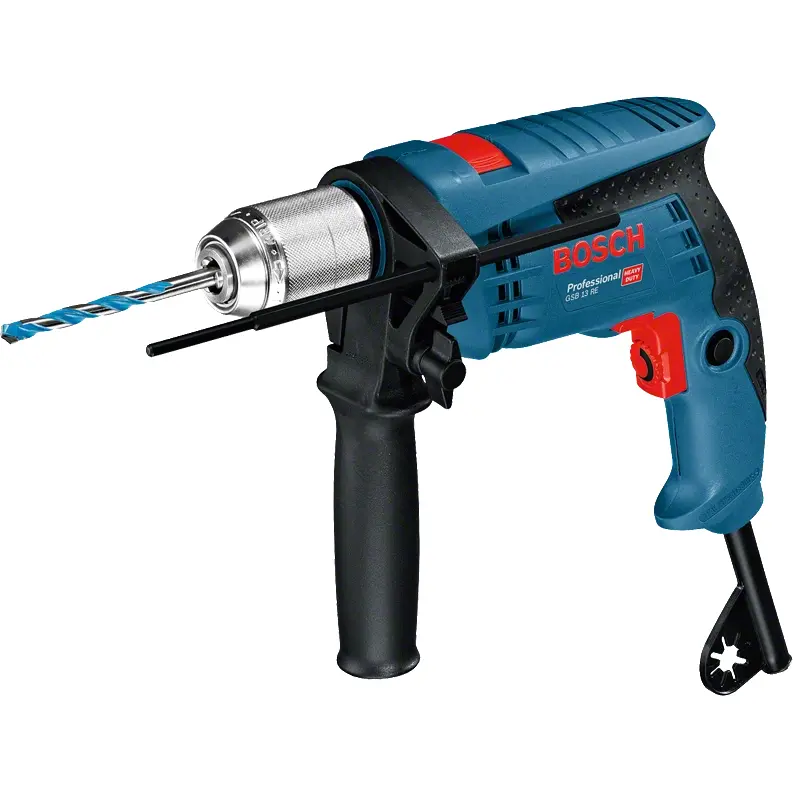

The GSB 13 RE Professional is a compact corded 1-geared entry-level impact drill. Its 1.8 kg lightweight design and small housing size provide convenience in handling and manoeuvrability. It is also particularly robust, including a durable metal keyless chuck. Additionally, this impact drill delivers professional results at an optimum price performance value.
Equipment & Application
This tool is intended for drilling in concrete, stone, and masonry.
