Additional data |
|
|---|---|
| Rated input power | 850 W |
| Voltage, electrical | 240 V |
| Bit holder | 1/2″-20 UNF |
| No-load speed, 1st gear | 0 – 1,000 rpm |
| No-load speed, 2nd gear | 3,000 rpm |
| Power output | 430 W |
| Weight | 2.6 kg |
| Impact rate at no-load speed | 0 – 17,000 / 51,000 bpm |
| Rated speed | 800 / 2,060 rpm |
| Rated torque | 5.2 / 2.0 Nm |
| Drill spindle connecting thread | 1/2″-20 UNF |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Max. torque | 36.0 Nm |
Drilling range |
|
|---|---|
| Drilling diameter in wood | 40 / 25 mm |
| Drilling diameter in steel | 13 / 8 mm |
| Drilling dia. in stone | 20 / 15 mm |
| Drilling diameter in masonry | 20 / 15 mm |
Total vibration values (Drilling in metal) |
|
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 3 m/s² |
Total vibration values (Impact drilling in concrete) |
|
|---|---|
| Vibration emission value ah | 2 m/s² |
| Uncertainty K | 15 m/s² |
Total vibration values (Screwdriving) |
|
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 2.5 m/s² |
Total vibration values (Thread-cutting) |
|
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 2.5 m/s² |
Drilling in metal |
|
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 3 m/s² |
Impact drilling in concrete |
|
|---|---|
| Vibration emission value ah | 2 m/s² |
| Uncertainty K | 15 m/s² |
Screwdriving |
|
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 2.5 m/s² |
Thread-cutting |
|
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 2.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 110 dB(A). Uncertainty K= 5 dB.

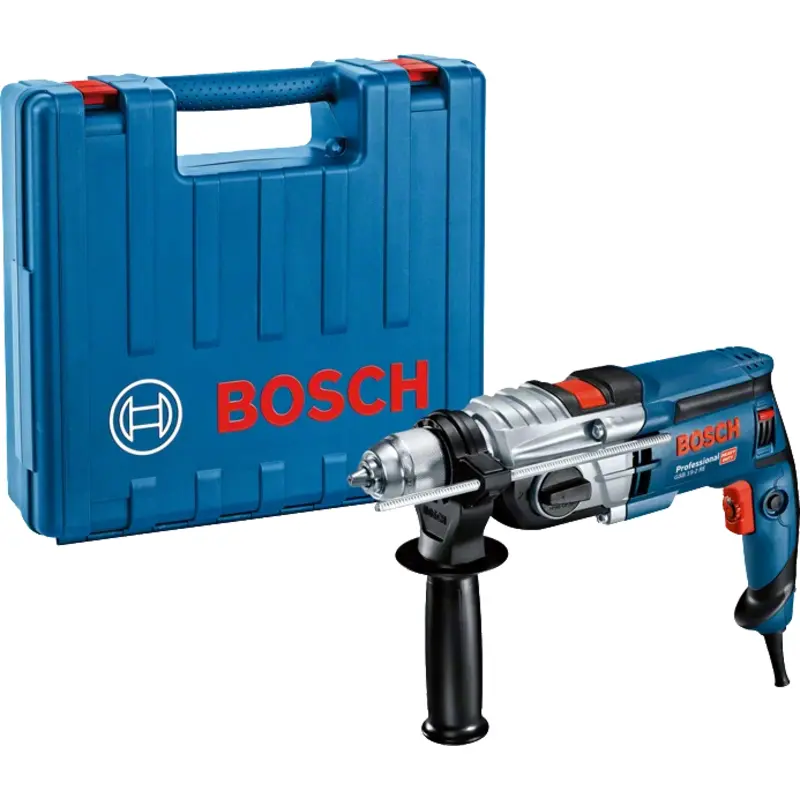

GSB 19-2 RE PROFESSIONAL: FURTHER INFORMATION
Product Highlights
The GSB 19-2 RE Professional is a corded 2-geared all-round performing impact drill. It has a reliable 850 W motor enabling fast work progress. It also features a rotation control clutch providing a high level of user protection. The impact drill is designed with a sturdy metal gear housing ensuring a long tool lifetime.
Equipment & Application
This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the attachment GDE 16 Cyl Professional.
