Specs | General |
---|---|

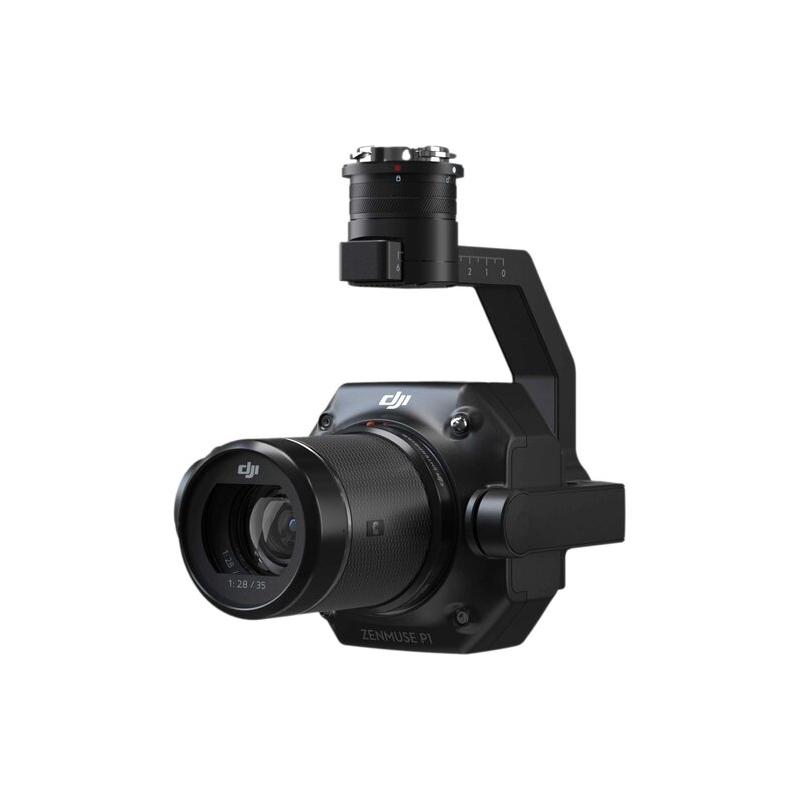

Product Name | ZENMUSE P1 |
Dimensions | 198×166×129 mm |
Weight | Approx. 800 g |
Power | 20W |
IP Rating | IP4X |

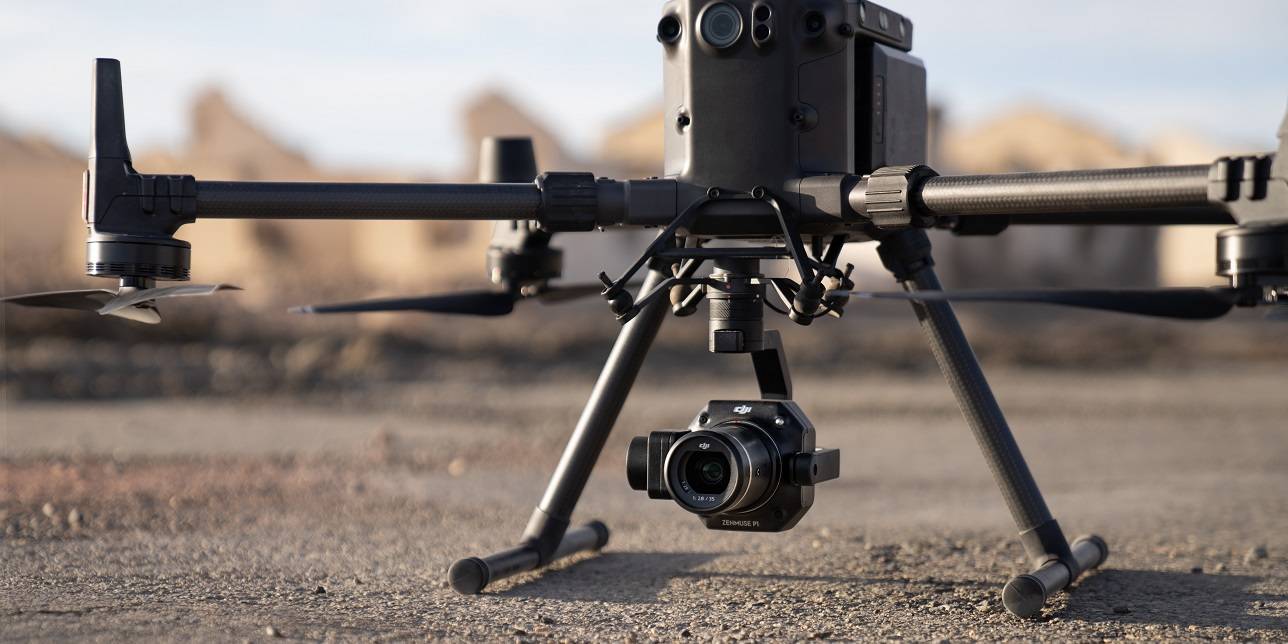

Supported Aircraft | Matrice 300 RTK |
Operating Temperature Range | -20° to 50° C (-4° to 122° F) |
Storage Temperature Range | -20° to 60° C (-4° to 140° F) |
Absolute Accuracy | Horizontal: 3 cm, Vertical: 5 cm* |
Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate. |
Camera | Sensor |
---|---|
Sensor size (Still) | 35.9×24 mm (Full frame) |
Sensor size (Max video recording area) | 34×19 mm |
Effective Pixels | 45MP |
Pixel size | 4.4 μm |
Supported Lenses | Supported SD Cards |
---|---|
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° | SD: UHS-I rating or above; Max capacity: 512 GB |
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° | |
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8° |
Storage Files | Photo Size |
---|---|
Photo / GNSS Raw Observation Data/ Image Log File | 3:2 (8192×5460) |
Operation Modes | Minimum photo interval |
---|---|
Photo, Video, Playback | 0.7 s |
Shutter Speed | Aperture Range |
---|---|
Mechanical Shutter Speed: 1/2000*-1 s | f/2.8-f/16 |
Electronic Shutter Speed: 1/8000-1 s | |
Aperture value no larger than f/5.6 |
ISO Range | |
---|---|
Photo: 100-25600 | |
Video: 100-25600 |
Video | Gimbal |
---|---|
Video Format | 3-axis (tilt, roll, pan) |
MP4, MOV |
Video Resolution | Angular Vibration Range |
---|---|
16:9 (1920×1080) | ±0.01° |
16:9 (3840×2160) | |
Only 35mm lens supported |
Frame Rate | Mount |
---|---|
60fps | Detachable DJI SKYPORT |
Mechanical Range | |
---|---|
Tilt: -130° to +40°; | |
Roll: -55° to +55°; | |
Pan: ±320° |
